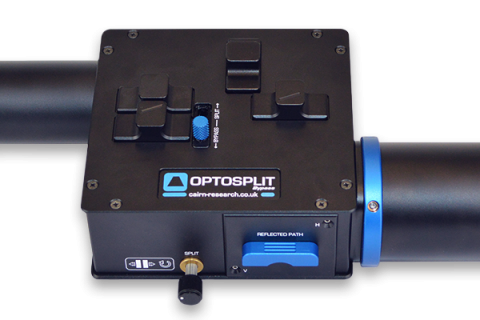

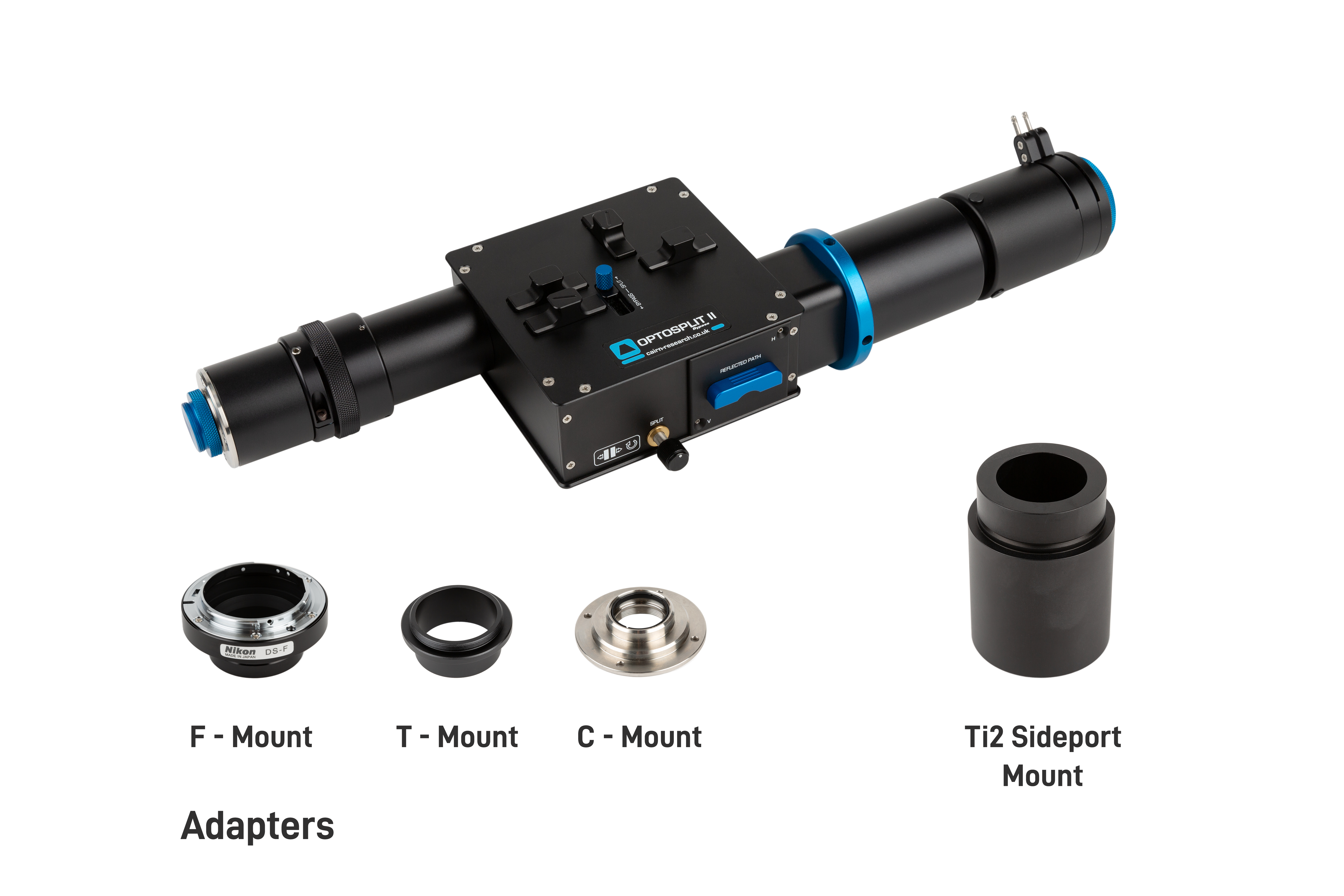

OptoSplit II LS Bypass

Easy-to-align image splitter that enables a single camera to record images simultaneously at two different emission wavelengths with integrated bypass slider

  • User-friendly design requires minimal maintenance and makes alignment simple
  • Integrated bypass slider for alignment-free bypass imaging
  • Excellent for use in FRET, TIRF, and spinning disk confocal applications
  • Compatible with all major brands of camera, including large sCMOS chips

In Stock

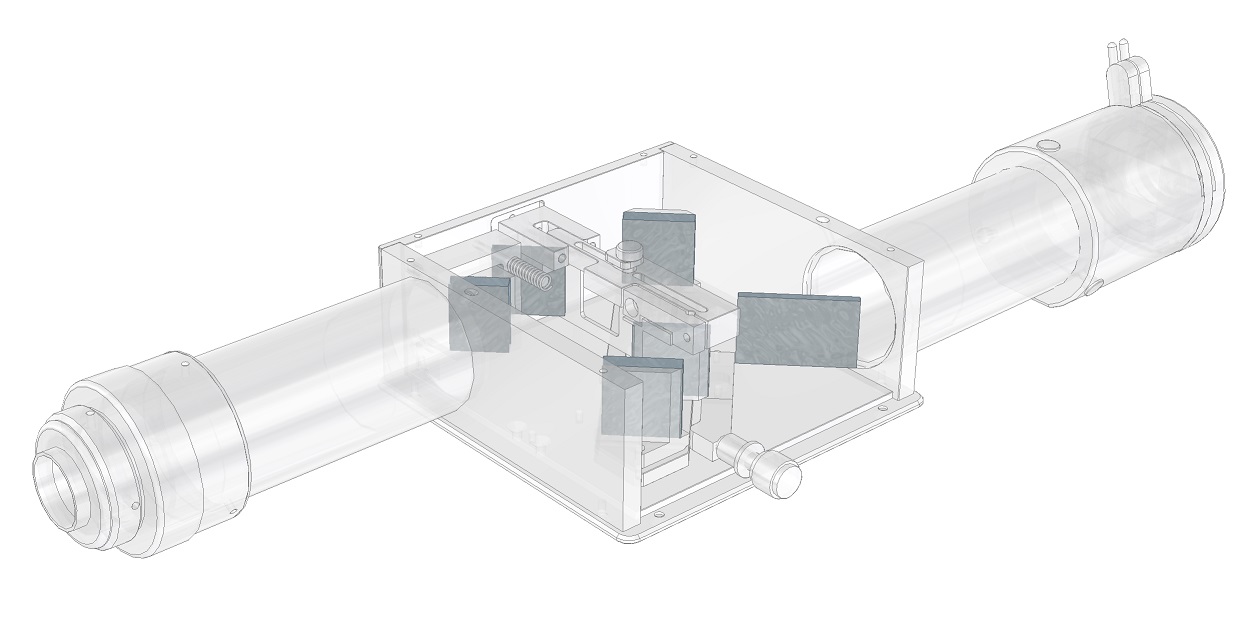

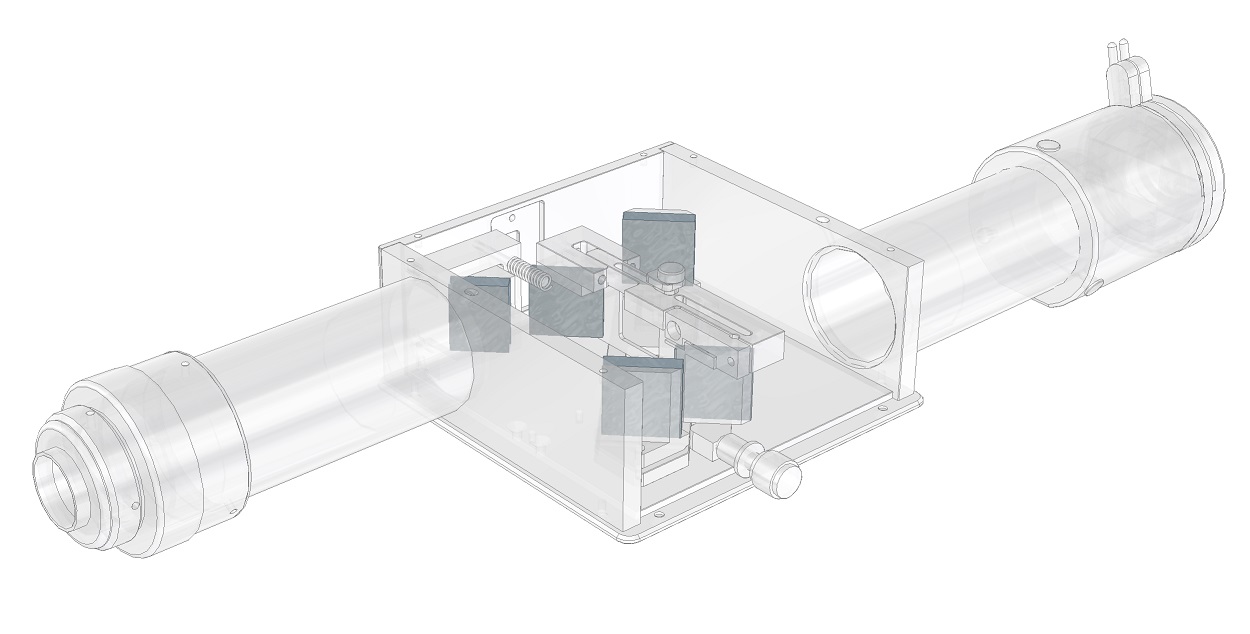

The Cairn OptoSplit II LS BP is our best ever dual-channel simultaneous imaging system for use with a single camera. It builds on the success of the OptoSplit II but adds a convenient single lever bypass mode making it more suitable for multi-user microscopes where simultaneous dual channels are only required for specific experiments alongside single wavelength imaging.

The OptoSplit II Bypass has been designed as a convenient solution for simultaneous dual-wavelength imaging. Traditionally, dual-wavelength imaging experiments required that two images be captured sequentially.  However, because the two images were not taken at the same time, temporal artifacts, caused by intracellular movement, often appeared between exposures.  To eliminate these temporal artifacts and provide the most accurate measurements, the OptoSplit II allows both images to be acquired simultaneously.

The images captured by the OptoSplit II contain information from two different emission bands and can be processed using commercially available software packages. Alternatively, the images can be processed manually.  While it is optimized for coupling to a scientific microscope, the OptoSplit II can also be used with camera lenses or any other system of lenses that produce an image plane of a suitable size.

Standard Spectral Range450 nm – 900 nm
Operating modesSplitview

Full field bypass

Dimensions110 mm (L) x 261 mm (W) x 79 mm (H)
Weight1.26 kg
Emission filter size25 mm
Dichroic mirror size25.5 mm x 36.0 mm
or
26.0 mm x 38.0 mm2.0 mm thick UltraFlat dichroics highly recommended
Camera size supportedUp to 22 mm diagonal
Supports large sensors up to 22 mm diagonalLarge field of view, including sCMOS detectors
User exchangeable dichroic mirrorsEasily reconfigure system for different experiments

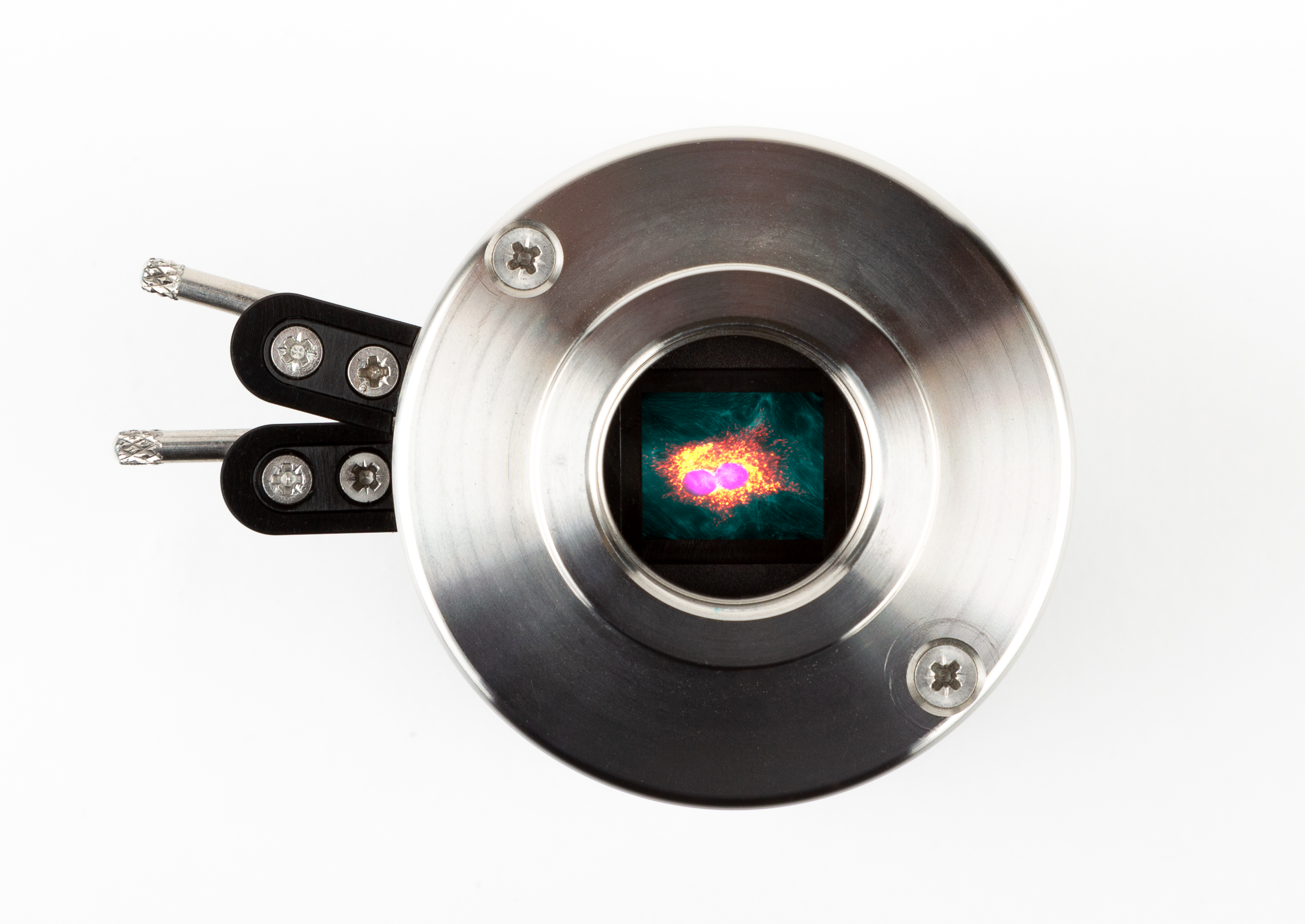

Adjustable input aperturePrecise definition of the desired field of view; also supports cropped sensor mode found in many EMCCD cameras
Supports dichroic mirrors up to 3 mm thickDistortion-free images
Stable alignmentLong-term time-lapse imaging
Optional auxiliary filter holdersAccommodates ND filters, chromatic correction lenses, supplementary emission filters, or lens for multiplane microscopy
  • Ratiometric, calcium, voltage, and pH imaging
  • Dual probe widefield imaging
  • Förster Resonance Energy Transfer (FRET)
  • Total Internal Reflection Fluorescence (TIRF)
  • Spinning disk confocal microscopy
  • Polarization/Anisotropy
  • Combined fluorescence/transmitted light microscopy
  • Multifocal plane microscopy
