Emissions Infinity Port

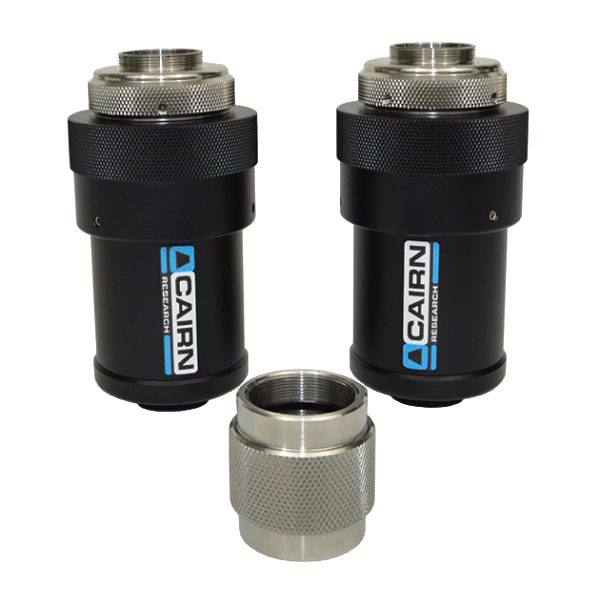

The Cairn Emission Infinity port is a simple 1x relay device providing up to 200mm of infinity space to insert filter wheels or other devices for which the angle of incoming light is important. Features include:

• Broad wavelength range (425-875nm)
• Supports 18.8mm diagonal sensors
• Magnification options on request

Using our custom designed optics allows the Emission Infinity Port to work with sensors up to 18.8mm diagonal as to not compromise on field of view. In many microscope systems, filter wheels are built into the c-mount output, where the light is converging down to its focal point (i.e the camera chip). While this tends not to be a problem in standard widefield imaging, this can cause two problem for advanced techniques:

  1. The properties of optical filters are based around receiving light at 0 degrees. When a filter is placed in converging, or diverging light, the central beams will travel through the filters at zero degrees, but the outer beams will be travelling through at an angle, which will distort the wavelength band of the filter, and could lead to bleed-through of some excitation light, causing an increase in background noise.
  2. When light travels through an optical element at 0 degrees, the focal point remains unchanged, but when it travels through at an angle, refraction will cause the focal point to shift, thus the image on the camera will no longer be parfocal with the image through the eyepieces. This can also affect the point spread function.

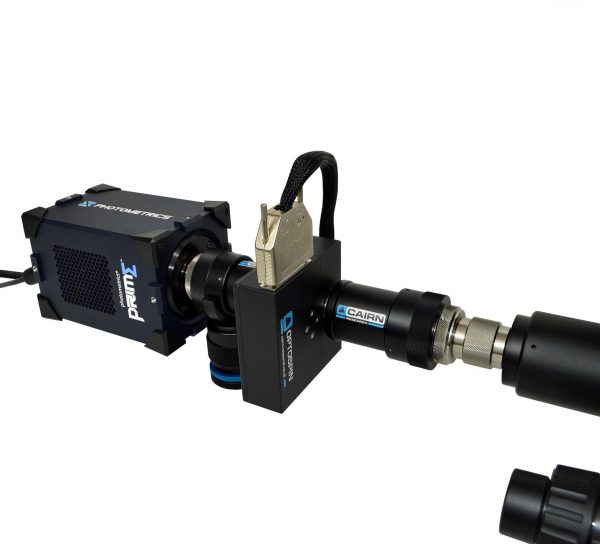

In addition to using this device to mount a filter wheel, it is also useful to extend the c-mount away from the microscope to better fit with existing climate chambers where internal space is limited.

• Broad wavelength range (425-875nm)
• Supports 18.8mm diagonal sensors
• Magnification options on request
• High throughput
• Maintains parfocality with the microscope eyepieces
• Maintains specified wavelength bands of optical filters
• Infinity space flexible for a range of filter wheels
• Suitable for integrating phase plates or emission sliders into infinity space
• C-mount to C-mount device (F-mount on request)
• Can be used with a blank to move the detector away from the microscope
• Access to pupil plane
