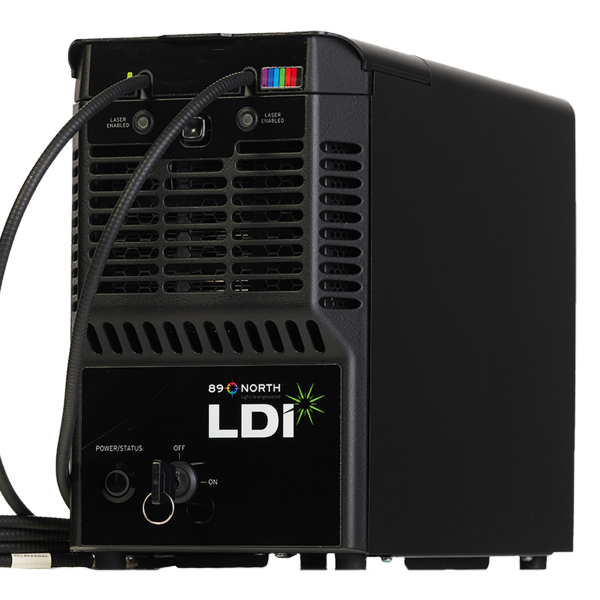

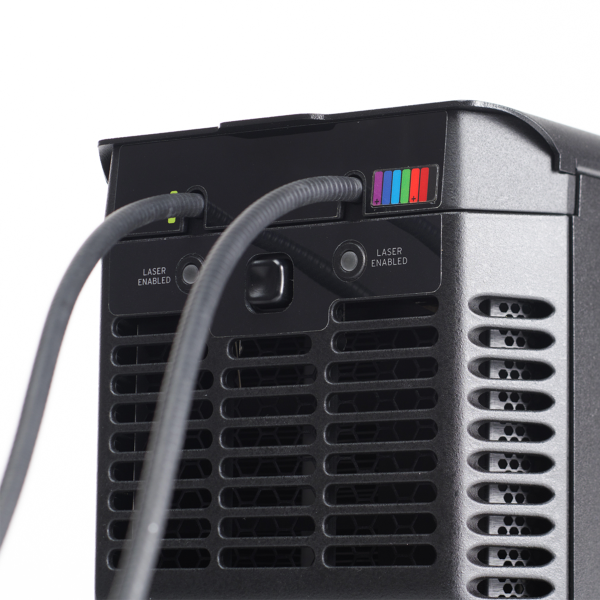

LDI-NIR Product Overview
The LDI-NIR is the same great multiline, solid-state laser illuminator as the LDI-7, but offers more power and extends the range into the NIR. This affordable multi-mode laser launch will change how you imagine laser illumination.
Have questions about the specifications or capabilities? >> Ask an Engineer
Specifications
Find specifications for our LDI-NIR line of products below. Note that we can also work with you to provide solutions for your unique needs.
| Source Type | Laser Diodes | ||||||
| Lifetime | 20,000 hrs – 2 year warranty | ||||||
| Laser Line (nm) | 405 | 445 | 470 or 488 | 520 | 555 or 577 | 640 | 730 |
| Continuous Wave Stability2 | < 2% | < 2% | < 2% | < 2% | < 2% | < 2% | < 2% |
| Optical Power Min (mW)1 | 450 | 1000 | 1000 | 500 | 1000 or 700 | 900 | 850 |
| Max Rise Time1 | < 10μs | < 10μs | < 10μs | < 10μs | < 2ms | < 10μs | < 10μs |
| Max On/Off Frequency (Hz)3 | > 1000 | > 1000 | > 1000 | > 1000 | > 1000 | 100 | > 1000 |
| Output Options | optical fiber 4 | ||||||
| Control Options | TTL (>2.3 V) Analog (0–5 V) USB–DSP (virtual COM port) – SDK available upon request |
||||||
| Safety | Interlocked housing Safety interlock Key interlock IEC 60825 compliant |
||||||
| Dimensions | 12.5” x 9.2” x 5.75”, 318mm x 234mm x 146mm | ||||||
| Weight | ~9 lbs | ||||||
| Operating Temperature | 15-30 ̊ C | ||||||
| Storage Temperature | -18-50 ̊ C | ||||||
| Humidity | < 80% non-condensing | ||||||
| Voltage | 90–220 V AC, 50–60 Hz | ||||||
| Fuse | None | ||||||
1. Measured at 100% intensity, 23°C ± 2°C
2. Standard Deviation relative to the mean power measurements, measured at 100%
intensity, 23°C ± 2°C
3. Measured at 100% intensity, 50% duty cycle
4. Recommended output fiber is 400 μm, 0.39 NA bifurcated fiber
Features
Find the unique features of our LDI-NIR line up below.
| High output power | Shorter exposures Faster imaging Faster activation times in optogenetics and photoactivation experiments Faster bleaching times in FRAP experiments |
| Feedback controlled optical stability | Quantitative imaging, ideally suited for ratiometric imaging More repeatable optogenetics experiments |
| Up to 100:1 linear dynamic range | Ability to turn power down when needed and maintain stability and quantitative imaging |
| Up to 7 laser lines | Covers most of the standard fluorescence probes (405 nm, 445 nm, 470 nm, 520 nm, 555 nm, 640 nm, 730 nm) |
| No user alignment | Easy to use and maintain |
| TTL and Analog control | No need for software specific drivers |
Scientific Applications & Techniques
Our LDI-NIR light engines are used in some of the worlds most advanced laboratories in a wide range of applications and techniques. These include those listed below.
|
|
Downloadable Documents
Please find links below to relevant downloads for our products.
LDI-NIR Frequently Asked Questions (FAQs)
Here are answers to some of the most frequently asked questions we receive. Not seeing what you are looking for? >> Ask our engineers
The key factors to consider are: wavelength, power, delivery, repeatability, and cost. 89 North can deliver on all factors.
There are many differences but the four most important are:
- Small fiber size. The LDI is available in 100um, 400um, or larger fibers.
- Linearity. The LDI is an extremely useful light source for quantitative imagine, with linearity tracked internally from 1% to 100%.
- Specificity. The wavelengths of light from the LDI are not broad in spectrum line an LED. They are highly specific, which is critical for fluorescent illumination.
- Stability. The LDI is a very stable light source, which enables both accuracy any precision of light measurements.
Virtually none. The LDI ships fully aligned, and requires no regular alignment or cleaning.
Many factors, like wavelength, stability, and maintenance are critical issues that are often overlooked. Don’t just pay attention to cost, as all lasers are not the same.
Absolutely! The LDI is extremely stable, and linear from 1% to 100%.
The LDI is about the size of a small desktop computer. The dimensions are 12.5” x 9.2” x 5.75”, 318mm x 234mm x 146mm. You can find more specifications in the table at the top of the page.
The single most important thing to remember when setting up any laser light source is safety. Always review all documentation carefully, and consult your institution’s laser safety officer with any questions.
LDI-NIR Peer Reviewed in Scientific Publications
Our light engines are used in some of the most pioneering labs across the world. Here are some of the scientific citations we’ve received.
Our Products are Used in the Nation's Most Advanced Labs
Our LDI products are used in some of the nation’s most advanced laboratories. Here are a few.
Request A Quote
Contact us for a free quote. Need something bespoke? We can work with you to configure a specialized range of laser lines and options.
