89 North

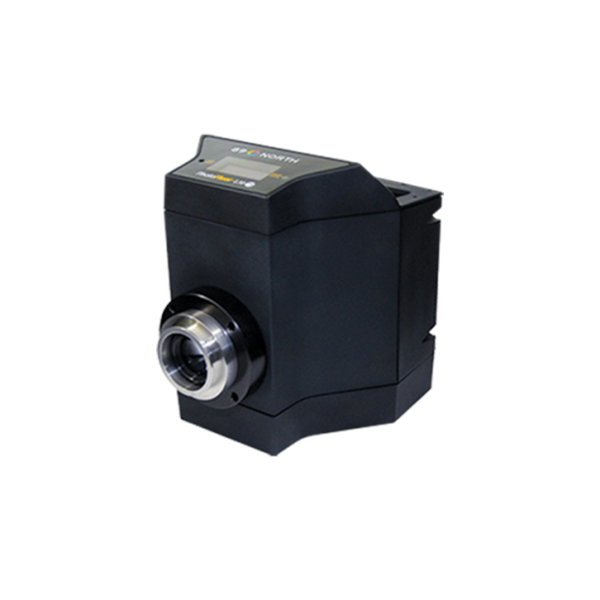

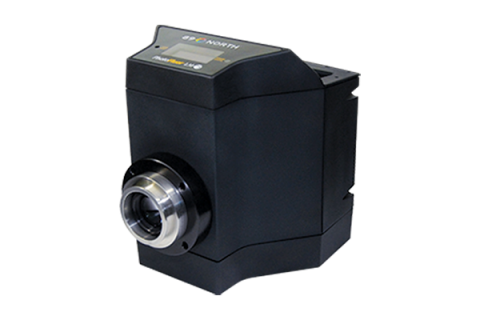

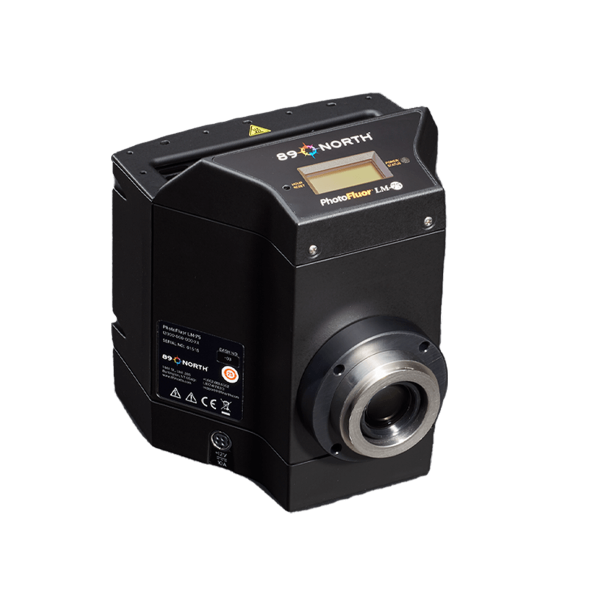

PhotoFluor LM-75

Low-cost, high-power, ultra-stable metal-halide light source

  • Mounts directly to a microscope with a small footprint
  • High UV output and no flickering
  • Well-suited for routine fluorescence, FISH, and clinical applications

In Stock

The PhotoFluor LM-75 is the only direct-mount metal halide light source for fluorescence microscopy. With no liquid light guide and a built-in DC-ballast, the LM-75 delivers the highest possible intensity at the sample and extremely stable output. Together with pre-aligned, user-exchangeable lamp and ultra-quiet operation, the PhotoFluor LM-75 is an ideal replacement for a traditional mercury lamp.

Dimensions 6.7″ x 7.1″ x 7.5″
Weight 3.8 lbs – 5.2 lbs depending on the configuration
Lamp Lifetime 1500 hrs guaranteed
2000 hrs typical
Warm-Up and Cool Down Time 3 minutes

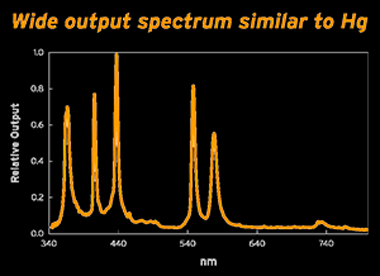

Output Range 340 nm – 800 nm



Direct-Mountable Design Eliminates need for a liquid light guide
User-Exchangeable Lamp Requires no user alignment
Quiet Operation Ideal for use in cramped rooms
No External Controller Saves bench space
High Output Intensity Reduced exposure times
DC-Ballast Extremely stable output
Long Lamp Life Reduced downtime
  • Fluorescence microscopy
  • FISH imaging
  • Routine fluorescence imaging
  • Tissue culture imaging
  • Wafer inspections via reflected light port
