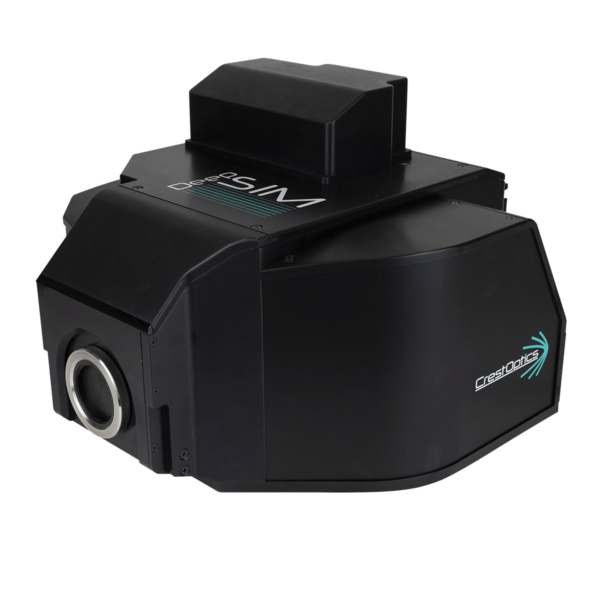

DeepSIM Product Overview
Launched in October 2021, DeepSIM is a super resolution module developed to enhance the imaging capabilities of high end microscope systems.
Have questions about the specifications or capabilities? >> Ask an Engineer
Specifications
Find specifications for DeepSIM below. Note that we can also work with you to provide solutions for your unique needs.
| DeepSIM stand-alone | DeepSIM X-Light | |
| FOV | 1024x1024pixel (66×66 µm 100X | 333×333µm 20X) | 1024x1024pixel (66×66 µm 100X | 333×333µm 20X) |
| Resolution | Lateral Resolution (FWHM): ~100 nm (100X NA 1.45) Axial Resolution (FWHM): ~300 nm (100X NA 1.45) | ution (FWHM): ~100 nm (100X NA 1.45) Axial Resolution (FWHM): ~300 nm (100X NA 1.45) |
| DeepSIM Acquisition speed | 13fps (1024x1024px) | 13fps (1024x1024px) |
| Laser spectral range | Excitation: 400-750 nm; emission: 400-850 nm | Excitation: 400-750 nm; emission: 400-850 nm |
| Objective specifications | from 20X to 100X magnification range -high numerical aperture (NA) -plan apochromat correction | from 20X to 100X magnification range -high numerical aperture (NA) -plan apochromat correction |
| Camera compatibility | Any triggerable camera having 6.5 µm pixel size | Any triggerable camera having 6.5 µm pixel size |
| Spinning disk upgrade | Stand-alone solution | Add-on compatible with CrestOptics X-Light V3 |
| Imaging modalities | Super-resolution DeepSIM | Widefield | Super-resolution DeepSIM | Confocal spinning disk X-light V3 | Widefield |
| Upgradable microscope configuration | Upright and inverted configurations | Inverted configuration |
| Software | µManager /VisiView® / NIS Elements | µManager /VisiView® / NIS Elements |
| Installation Conditions | Temperature 23 ± 5°C, Humidity 70% RH or less | Temperature 23 ± 5°C, Humidity 70% RH or less |
| Weight | 50.7 lbs | 23Kg | 44 lbs | 20Kg |

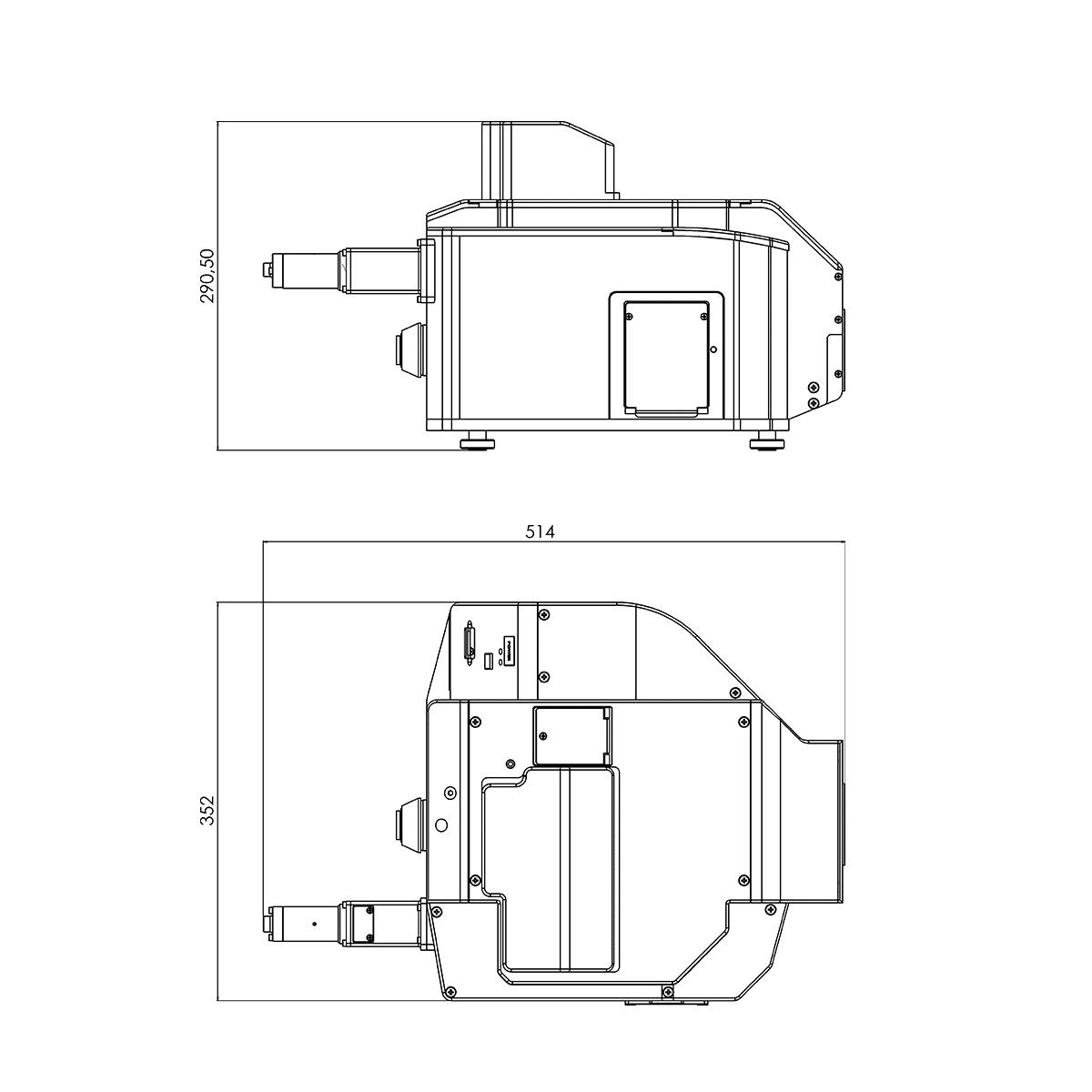

| Dimensions | 13.8 (w) x 20.2 (L) x 11.4 (h) inches 352.0 (w) 514.0 (L) x 290.5 (h) mm | 14.0 (w) x 17.1 (L) x 11.4 (h) inches 356.0 (w) 435.0 (L) x 290.5 (h) mm |
Features
Find the unique features of the DeepSIM below.
| Compact and stable | Can be reconfigured rapidly and easily for different applications |
| Supplied with infinity-corrected tube lens and objectives from multiple sources, including Olympus and Nikon | Simultaneous imaging with multiple cameras and large format sensors (>25mm diagonal) |
| Extensible, only buy (or build) what you need, as you need it | Sustainable, can be supported and maintained by any competent microscopist or technician |
| Direct interface with parts from other manufacturers (e.g. Thorlabs) for rapid development of new techniques | Brand agnostic, works with existing illuminators, cameras, stages, objectives, filters, and lenses from any manufacturer |
| Unrivalled access to optical train, laser pointer test kit available for alignment and validation | Easy to clean or autoclave |
| Transportable – suitable for tradeshows, teaching courses and secondments | No eye pieces – COVID-19 / multi-user friendly |
Scientific Applications & Techniques
DeepSIM is used in some of the worlds most advanced laboratories in a wide range of applications and techniques. These include those listed below.
|
|
Peer Reviewed in Scientific Publications
Our products are used in some of the most pioneering labs across the world. Here are some of the scientific citations we’ve received.
-
Kyle Newton
Lateral line ablation by ototoxic compounds results in distinct rheotaxis profiles in larval zebrafish.
-
Barth D. Grant
Large vesicle extrusions from C. elegans neurons are consumed and stimulated by glial-like phagocytosis activity of the neighboring cell.
-
Adriana San-Miguel
Endogenous DAF-16 spatiotemporal activity quantitatively predicts lifespan extension induced by dietary restriction.
-
Heidi Hehnly
Rab11 endosomes and Pericentrin coordinate centrosome movement during pre-abscission in vivo
Our Products are Used in the Nation's Most Advanced Labs
Our LDI products are used in some of the nation’s most advanced laboratories. Here are a few.
Request A Quote
Contact us for a free quote. Need something bespoke? We can work with you to configure a specialized range of laser lines and options.
